| Options : |
| Chip Conveyor |
| Live Tool Turret for Tum-Mill Applications |
| Special Work Holding |
| Loading - Unloading Automation |
|
|

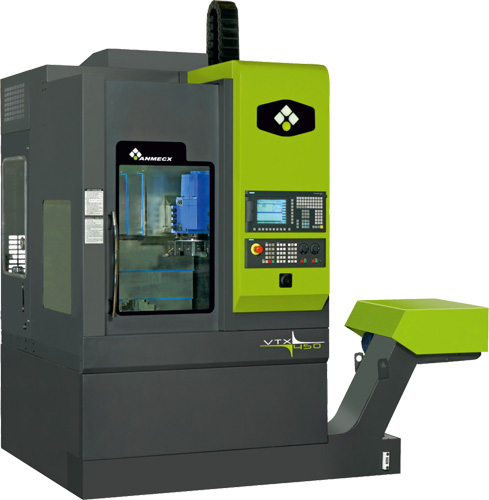

| Vetical Turning Center Machine VTX - 450 (Suitable for Unbalanced & Heavy Jobs) |
| Max Swing Dia |
: |
Ø 650mm |
| Max Turning Dia / Over Way Cover |
: |
Ø 650mm / Ø 440mm |
| Max Turning Length |
: |
400mm |
| Chuck Size |
: |
12" |
| Spindle Nose |
: |
A2 - 8 |
| Spindle Motor Output (Cont. / 30 Min.) |
: |
12kw / 15kw (Optional 15kw / 18kw) |
| Spindle Speed |
: |
2500rpm |
| Spindle Full Power Range |
: |
400 - 2500rpm |
| X/Z axis Travel |
: |
300mm / 530mm |
| X/Z axis Rapid |
: |
20m / min. |
| Turret Station |
: |
8 - Station / 12 - Station |
| Tool Shank Size |
: |
25 x 25 |
| Boring Bar Dia. |
: |
40mm |
| CNC Controller |
: |
Siemens 828D / FANUC Series 0i Mate - ID |
| Machine Weight |
: |
4300kg |
|
|
